Ergonomic Handle
Macstroc "STROC35" is the efficient basic model Magnetic drilling machine with 35MM core drilling capacity and single speed 1000 W motor. The machine is very compact, ergonomic, handy and the lightest, weighing of 10.5Kg.
The best feature for 'stroc35' is "two way sliding rails", which can uplift the motor height and get the stroke up to 210MM. The efficient internal lubrication system provides longer life for the gears. Magnetic bottom wear design prevents wear of magnet bottom and extend life. Magnetic suction protection enables maximum safety and motor does not start on non-metal or low suction surface.
Compact body design, lighter, rigid, improve drilling accuracy
| ANNULAR CUTTERS | MAX.Ø 35MM |
| COUNTERSINKS | MAX.Ø 35MM |
| TWIST DRILLS | MAX.Ø 13MM |
| LENGTH | 160.0 MM |
| WIDTH | 80.0 MM |
| LIFT | 118.0 MM |
| MAX STROKE | UP TO 210MM |
| SPINDLE (ADAPTER) | WELDON 19.05MM |
| CUTTING DEPTH CORE | 50.0 MM |
| WEIGHT | 10.5 KG |
| MAGNETIC FORCE | 10000 N |
| MOTOR POWER | 1100 WATTS |
| SPEED | 595 U/min / r.p.m |
| VOLTAGE | 230V 50/60 Hz |
Magnetic bottom wear design prevents magnet wear and enables suction up to 10000N safely
Magnetic "double safety protection" prevents motor to start on non-metal base or low suction surface.
FEATURES OF STROC35
Special design prevents, liquid or debris falling inside
Internal Automatic cooling system protects gears

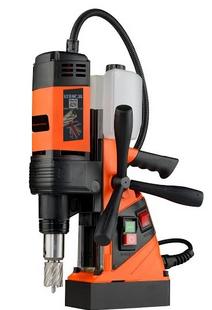

STROC35 Magnetic drilling machine
Adjustable 'Two way Sliding Rails' enables you to uplift stroke up to 210MM
