Annular cutting
Ø 12 - 75 mm
Twist drilling
Ø 1 - 31,75 mm
CountersinkingØ 10 - 105 mm
ThreadingM3 - M30
Length
400 mm
Width230 mm
Height580-710 mm
Stroke210 mm
Weight
22 kg
Magnet (l x w x h)
220 x 110 x 60 mm
Magnetic force18000N
Motor power1800 W
Total power2050 W
Speed (no load)260/460 rpm
Speed (load 1800W)195/345 rpm
SpindleMT-3 [Weldon-19,05 mm/31.75mm]
Voltage110 - 120 V / 60 Hz

220 - 240 V / 50 - 60 Hz

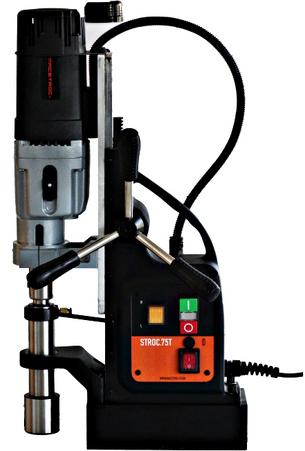

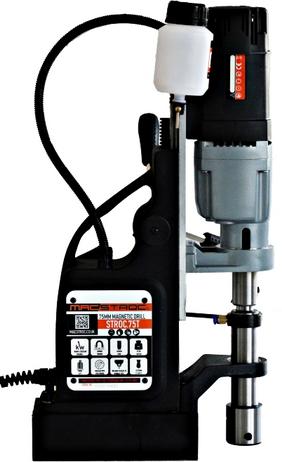

STROC.75T  MAGNETIC DRILL Ø75MM W/TAPPING

QUALITY DEFINED

The portable Macstroc STROC.75T is the best magnetic core drilling machine with MT-3 connection, can do twist drilling, annular cutting as well as threading with its reverse function. This magnetic core drilling machine has integrated tool cooling and lubrication for the best drilling performance. It built with 1800W powerful motor, and the magnetic adhesion of 1800Kgs and 2 speed-gear box.
